DB Drive™ WDX® Series Mini WDX1000.1 1,000-Watt-Max Monoblock Class-D Audio Amplifier 12-Volt for Vehicles, with Remote
Petra SKU:
DBDDWDX10001
Part No.:
395949
Vendor SKU:
D WDX1000.1
UPC:
811536036490
Retail Price:
$199.99
The WDX1000.1 Monoblock Class-D 1,000-Watt Mini Amplifier from DB Drive can be used in a variety of high-performance car audio applications. The variable 2-stage RCA inputs are designed to accommodate different levels of low-level RCA outputs from head units or different processors. Its slim mounting width allows for big power in smaller spaces. The ACT crossover features both high- and low-pass filters which allow you to tune your system for different applications. Large-gauge, direct-connect power terminals will make sure you can get plenty of battery current to your amplifier for higher efficiency. This subwoofer amp features a 1-ohm load capability that matches with a pair of dual 4-ohm subwoofers.
This item is packaged in retail packaging.
Item not available for internet resale.
Free FedEx Ground shipping on qualified orders.
Warning:
Cancer and Reproductive Harm - www.P65warnings.ca.gov
Details
- 1 x 1,000 watts at 1 ohm; 1 x 500 watts at 2 ohms; 1 x 250 watts at 4 ohms; rated at 14.4 volts with working voltage between 12 volts and 15 volts
- 1-ohm mono capability
- Class D circuitry
- Frequency response: 20 Hz to 300 kHz; signal-to-noise ratio: less than 95 dB
- Variable subsonic filter: 10 Hz to 40 Hz
- Variable high-pass filter (12 dB slope): 40 Hz to 300 Hz
- Variable low-pass filter (12 dB slope): 10 Hz to 40 Hz
- Bass equalizer: 0 dB to 9 dB
- Low-level input: 6 volts to 0.2 volts

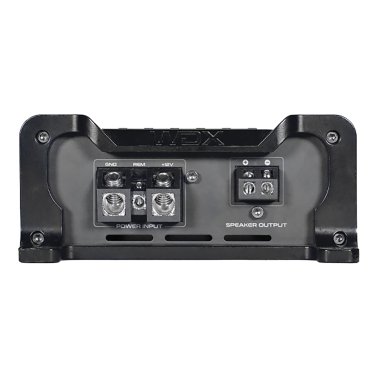

- 4-gauge power wire input
- CHM (Collective Heat Management), ACT (Adaptive Crossover Technology), SESI (Signal Evaluation Status Indicator, and APC (Audio Protection Circuit)
- Direct-connect speaker terminals
- Dimensions: 9 in. L x 5.5 in. W x 2.38 in. H
- Includes remote level control with cable and owner's manual/warranty
Specifications
1
5.15 Pound (lb)
7.6 Inch (in)
4.2 Inch (in)
11.1 Inch (in)
2.38 Inch (in)
5.5 Inch (in)
9 Inch (in)
4.5 Pound (lb)
12X10X4
11.1 x 7.6 x 4.2 in., 5.15 lbs.
9 x 5.5 x 2.38 in., 4.5 lbs.
Electric Hardwired
no wireless technology
RCA Pair
12, 14.4
D
Yes
1000 Watt (W)
250 Watt (W)
20 Hertz (Hz)
300 Hertz (Hz)
Car Audio
95dB
1000W @ 1ohm, 250W @ 4ohm, 500W @ 2ohm
1 Channels ()
1000 Watt (W)
0 Inch (in)
Amplifier, Remote, Cable
Black
1 year limited
Yes
Y
Black
Retail
China
Black
Aluminum , Plastic, Copper, resin
Product does not require a battery
Product does not require a battery
