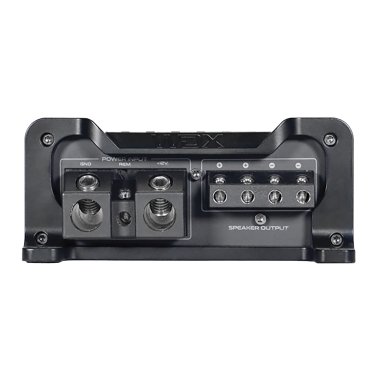

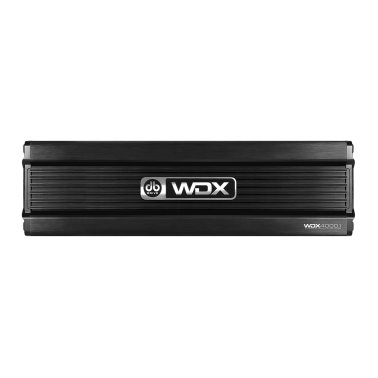

DB Drive™ WDX® Series Mini WDX4000.1 4,000-Watt-Max Monoblock Class-D Audio Amplifier 12-Volt for Vehicles, with Remote

DB Drive™ WDX® Series Mini WDX4000.1 4,000-Watt-Max Monoblock Class-D Audio Amplifier 12-Volt for Vehicles, with Remote

Petra SKU: DBDDWDX40001

Part No.: 395955

Vendor SKU: D WDX4000.1

UPC: 811536036537

Retail Price: $699.99

The WDX4000.1 Monoblock Class-D 4,000-Watt Mini Amplifier from DB Drive can be used in a variety of high-performance car audio applications. The variable 2-stage RCA inputs are designed to accommodate different levels of low-level RCA outputs from head units or different processors. Its slim mounting width allows for big power in smaller spaces. The ACT crossover features both high- and low-pass filters which allow you to tune your system for different applications. Large-gauge, direct-connect power terminals will make sure you can get plenty of battery current to your amplifier for higher efficiency. This subwoofer amp features a 1-ohm load capability that matches with a pair of dual 4-ohm subwoofers.

This item is packaged in retail packaging.

Item not available for internet resale.

Free FedEx Ground shipping on qualified orders.

Warning: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Details

1 x 4,000 watts at 1 ohm; 1 x 2,000 watts at 2 ohms; 1 x 1,000 watts at 4 ohms; rated at 14.4 volts with working voltage between 12 volts and 15 volts
1-ohm mono capability
Class D circuitry
Frequency response: 20 Hz to 300 kHz; signal-to-noise ratio: less than 95 dB
Variable subsonic filter: 10 Hz to 40 Hz
Variable high-pass filter (12 dB slope): 40 Hz to 300 Hz
Variable low-pass filter (12 dB slope): 10 Hz to 40 Hz
Bass equalizer: 0 dB to 9 dB
Low-level input: 6 volts to 0.2 volts
0-gauge power wire input
CHM (Collective Heat Management), ACT (Adaptive Crossover Technology), SESI (Signal Evaluation Status Indicator, and APC (Audio Protection Circuit)
Direct-connect speaker terminals
Dimensions: 20.63 in. L x 5.5 in. W x 2.38 in. H
Includes remote level control with cable and owner's manual/warranty

Warranty Document

Specifications

Inner Carton Quantity: 1

Individual Packaging Weight: 13.45 Pound (lb)

Individual Packaging Width: 7.5 Inch (in)

Individual Packaging Height: 4.2 Inch (in)

Individual Packaging Length: 22.7 Inch (in)

Product Height: 2.38 Inch (in)

Product Width: 5.5 Inch (in)

Product Length: 20.63 Inch (in)

Product Weight: 12.5 Pound (lb)

Shipping Box Dimensions: 25X10X5

Individual Package Dimensions (L x W x H, Weight): 8 x 23 x 4 in., 13 lbs.

Product Dimensions (L x W x H, Weight): 20.63 x 5.5 x 2.38 in., 12.5 lbs.

Power Source: Electric Hardwired

Wireless Source/Technology: no wireless technology

Connection Type: RCA Pair

Voltage Rating: 12, 14.4

Amplifier Class: D

Bass Knob Included Yes/No: Yes

Peak Power Rating: 4000 Watt (W)

RMS Power: 1000 Watt (W)

Minimum Frequency Range: 20 Hertz (Hz)

Maximum Frequency Range: 300 Hertz (Hz)

Amplifier Application: Car Audio

Signal to Noise Ratio (Clean): 95dB

RMS Output: 1000W @ 4ohm, 2000W @ 2ohm, 4000W @ 1ohm

Number of Channels: 1 Channels ()

Wattage: 4000 Watt (W)

Cord Length: 0 Inch (in)

Includes:

Amplifier, Remote, Cable

Primary Color: Black

Warranty Period: 1 year limited

Returnable: Yes

Free Freight: Y

Color: Black

Individual Packaging: Retail

Country of Origin: China

Manufacturer Color: Black

Material:

Aluminum , Plastic, Copper, resin

Battery Information: Product does not require a battery

Battery 2 Information: Product does not require a battery
