DB Drive™ WDX® MOTO Series MOTO1000/1 1,000-Watt-Max Monoblock Class-D Audio Amplifier 12-Volt for Vehicles, Off-Road, and Marine, with Remote
Petra SKU:
DBDDMOTO10001
Part No.:
395944
Vendor SKU:
D MOTO1000/1
UPC:
811536036674
Retail Price:
$299.98
The WDX MOTO1000/1 Full-Range Monoblock 1,000-Watt Class-D Amplifier from DB Drive can be used in a variety of car audio applications ranging from powering subwoofers to powering high-power pro audio drivers. Its compact size allows for big power in small spaces. The ACT crossover features both high- and low-pass filters which allow you to tune your system for different applications. The conformal-coated PCB allows you to use the WDX MOTO series amplifiers in cars, motorcycles, UTVs, and even marine applications. The 4-gauge direct-connect power terminals will make sure you can get plenty of battery current to your amplifiers for higher efficiency.
This item is packaged in retail packaging.
Item not available for internet resale.
Free FedEx Ground shipping on qualified orders.
Warning:
Cancer and Reproductive Harm - www.P65warnings.ca.gov
Details
- 1 x 1,000 watts at 1 ohm; 1 x 500 watts at 2 ohms; 1 x 250 watts at 4 ohms; rated at 14.4 volts with working voltage between 12 volts and 15 volts
- 1-ohm mono capability
- Frequency response: 20 Hz to 20 kHz, sensitivity: less than 95 dB
- Full-range Class-D circuitry
- Conformal PCB coating makes it ideal for motorcycle, UTVs, and marine applications
- Variable bass boost: 0 dB to 12 dB
- Variable high-pass filter (12 dB slope): 40 Hz to 10 kHz
- Variable low-pass filter (12 dB slope): 15 Hz to 1 kHz
- Bass equalizer: 0 dB to 9 dB
- Low-level input: 6 volts to 0.2 volts
- 4-gauge power wire input
- CHM (Collective Heat Management), ACT (Adaptive Crossover Technology), SESI (Signal Evaluation Status Indicator, and APC (Audio Protection Circuit)
- Dimensions: 6.65 in. L x 5.32 in. W x 2.46 in. H
- Includes remote level control with cable and owner's manual/warranty
Specifications
1
3.2 Pound (lb)
7.1 Inch (in)
4 Inch (in)
11.2 Inch (in)
2.46 Inch (in)
5.32 Inch (in)
6.65 Inch (in)
3 Pound (lb)
12X10X4
11.2 x 7.1 x 4 in., 3.2 lbs.
6.65 x 5.32 x 2.46 in., 3 lbs.
Electric Hardwired
no wireless technology
RCA Pair
12, 14.4
D
Yes
1000 Watt (W)
250 Watt (W)
20 Hertz (Hz)
20 Kilohertz (kHz)
Car Audio
95dB
1000W @ 1ohm, 250W @ 4ohm, 500W @ 2ohm
1 Channels ()
1000 Watt (W)
0 Inch (in)
Amplifier, Remote, Cable
Black
1 year limited
Yes
Y
Black
Retail
China
Black
Aluminum , Plastic, Copper, resin
Product does not require a battery
Product does not require a battery
DB Drive™ WDX® MOTO Series MOTO2000/1 2,000-Watt-Max Monoblock Class-D Audio Amplifier 12-Volt for Vehicles, Off-Road, and Marine, with Remote
Part No.:
395945
Vendor SKU:
D MOTO2000/1
Petra SKU: DBDDMOTO20001
Retail Price:
$399.98
DB Drive™ WDX® MOTO Series MOTO400/4 4-Channel Audio Amplifier 12-Volt for Vehicles, Off-Road, and Marine
Part No.:
395946
Vendor SKU:
D MOTO400/4
Petra SKU: DBDDMOTO4004
Retail Price:
$289.98

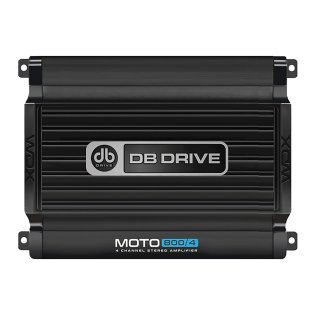

DB Drive™ WDX® MOTO Series MOTO800/4 4-Channel Audio Amplifier 12-Volt for Vehicles, Off-Road, and Marine
