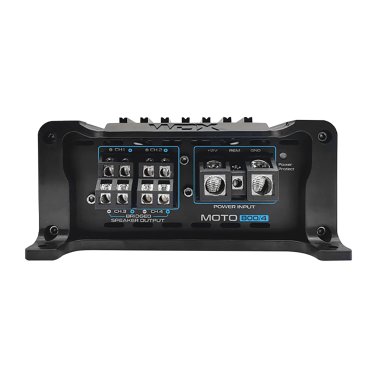

DB Drive™ WDX® MOTO Series MOTO800/4 4-Channel Audio Amplifier 12-Volt for Vehicles, Off-Road, and Marine
Petra SKU:
DBDDMOTO8004
Part No.:
395947
Vendor SKU:
D MOTO800/4
UPC:
811536036667
Retail Price:
$399.98
The WDX MOTO800/4 4-Channel Class-D Amplifier from DB Drive can be used in a variety of car audio applications ranging from simple coaxial and or component speaker setups to even a speaker and subwoofer set up with the rear channels bridged. Its compact size allows for big power in small spaces. The ACT crossover features both high- and low-pass filters which allow you to tune your system for different applications. The conformal-coated PCB allows you to use the WDX Moto series amplifiers in cars, motorcycles, UTVs, and even marine applications. The 4-gauge direct-connect power terminals will make sure you can get plenty of battery current to your amplifiers for higher efficiency.
This item is packaged in retail packaging.
Item not available for internet resale.
Free FedEx Ground shipping on qualified orders.
Warning:
Cancer and Reproductive Harm - www.P65warnings.ca.gov
Details
- 4 x 300 watts at 4 ohms; 4 x 400 watts at 2 ohms; 2 x 400 watts at 4 ohms bridged; rated at 14.4 volts with working voltage between 12 volts and 15 volts
- Minimum working impedance: 2-ohm stereo or 4-ohm bridged
- Frequency response: 20 Hz to 20 kHz, sensitivity: less than 105 dB
- Class D circuitry
- Conformal PCB coating makes it ideal for motorcycle, UTVs, and marine applications
- Crossover selector with high-pass filter, low-pass filter, and full
- Variable high-pass filter (12 dB slope): 40 Hz to 3 kHz
- Variable low-pass filter (12 dB slope): 40 Hz to 3 kHz
- Low-level input: 6 volts to 0.2 volts
- 4-gauge power wire input
- CHM (Collective Heat Management), ACT (Adaptive Crossover Technology), SESI (Signal Evaluation Status Indicator, and APC (Audio Protection Circuit)
- Dimensions: 7.83 in. L x 5.32 in. W x 2.46 in. H
- Includes owner's manual/warranty
Specifications
1
3.85 Pound (lb)
7.1 Inch (in)
3.9 Inch (in)
9.8 Inch (in)
2.46 Inch (in)
5.32 Inch (in)
7.83 Inch (in)
3.4 Pound (lb)
12X10X4
9.8 x 7.1 x 3.9 in., 3.85 lbs.
7.83 x 5.32 x 2.46 in., 3.4 lbs.
Electric Hardwired
no wireless technology
RCA Pair
12, 14.4
D
400 Watt (W)
300 Watt (W)
20 Hertz (Hz)
20 Kilohertz (kHz)
Car Audio
105dB
4x300W @ 4ohm, 4x400W @ 2ohm, 4x400W @ 4ohm
4 Channels ()
400 Watt (W)
0 Inch (in)
Amplifier
Black
1 year limited
Yes
Y
Black
Retail
China
Black
Aluminum , Plastic, Copper, resin
Product does not require a battery
Product does not require a battery
