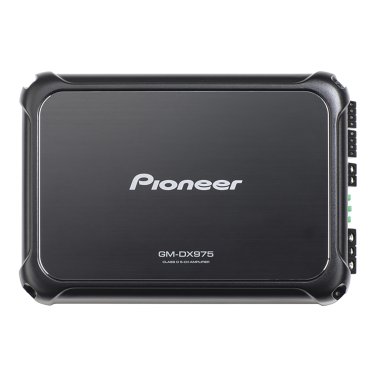

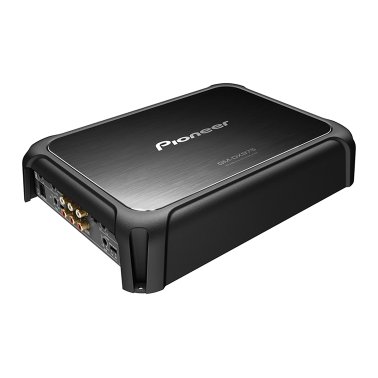

Pioneer® GM-DX975 2,000-Watt-Max 5-Channel Class D Amplifier with Wired Bass Boost Remote
Petra SKU:
PIOGMDX975
Part No.:
394623
Vendor SKU:
GM-DX975
UPC:
884938421867
Retail Price:
$470.00
The Pioneer GM-DX975 5-Channel Class D Amplifier can power your entire car audio system, sending up to 100 watts RMS to each of your front and rear speakers while delivering up to 600 watts RMS to your sub. CTA-2006 compliant, this highly efficient Class D technology keeps this powerful amp running and will fit in a lot of out of the way spaces. The frequency response of the full-range channels stretches up to 50 kHz to support crystal clear Hi-Res Audio certified playback. The GM-DX975 uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance. Put your GM-DX975 into 3-channel mode to create a strong front soundstage with bass by outputting up to 200 watts RMS each to a set of high-performance components up front, plus up to 600 watts RMS to your sub. The speaker-level inputs allow you to install this amp in a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, and a wired remote boost that lets you control the amount of bass boost from the front seat.
This item is packaged in retail packaging.
Item not available for internet resale.
Free FedEx Ground shipping on qualified orders.
Details
- Max power output: 2,000 watts; 150 watts x 4 channels at 4 ohms + 700 watts x 1 channel
- RMS power output: 75 watts x 4 channels + 350 watts x 1 channel at 4 ohms, 100 watts x 4 channels + 600 watts x 1 channel at 2 ohms, 200 watts x 4 channels + 350 watts x 1 channel at 4 ohms bridged
- 2-ohm to 8-ohm allowable load impedance
- Designed to power automotive speakers and subwoofers
- Class D technology makes it smaller in size for greater installation options
- Frequency response, main channels: 10 Hz to 50 kHz; Hi-Res Audio certified
- Frequency response, subwoofer channel: 10 Hz to 500 Hz
- 50 Hz bass boost
- Made from high-quality, textured aluminum panel and tough frame plus high-quality audio components for long life
- PCS (Protection Control System) continuously monitors input voltage, current consumption, and operating temperature to automatically adjust amp's output to ensure operational stability during long listening sessions or when installed in high-temperature environments
- Gold-plated RCA terminals for accurate signal with increased electrical conductivity; prevent corrosion and provide enhanced durability with excellent wear resistance
- Fuse rating: 30 amps x 3
- Dimensions: 11-7/8 in. x 2-3/8 in. x 8-1/2 in.
- Weight: 7.3 lbs. (not including leads for wiring)
- Includes 3 installed ATO fuses, bass boost remote and control cable, speaker level to RCA input adapter, installation screws, wire terminal tool, owner's manual, and warranty sheet
Specifications
1
8.1 Pound (lb)
10.6 Inch (in)
4.3 Inch (in)
14.7 Inch (in)
2.375 Inch (in)
11.875 Inch (in)
8.5 Inch (in)
7.3 Pound (lb)
15X13X8
14.7 x 10.6 x 4.3 in., 8.1 lbs.
8.5 x 11.875 x 2.375 in., 7.3 lbs.
Electric
Radio Frequency
RCA
14.4
D
Yes
2000 Watt (W)
150 Watt (W)
10 Hertz (Hz)
50 Kilohertz (kHz)
Car Audio
No Mount Included
75dB
150W @ 4ohm, 700W @ 4ohm
30A x 3
<1.0%
5 Channels ()
2000 Watt (W)
0 Inch (in)
5-Channel amplifier,Three 30-amp ATO fuses (installed),Bass Boost Remote Control,Bass Boost Remote Control Cable,Speaker Level to RCA Input Adapter,Installation Screws X 4,Wire Terminal Tool x 2,Owner's manual (English/ French),1 Year Warranty Sheet
Black
1 year
Yes
Y
Black
Retail
China
Black
00884938421867
Metal
Not Applicable
Not Applicable
