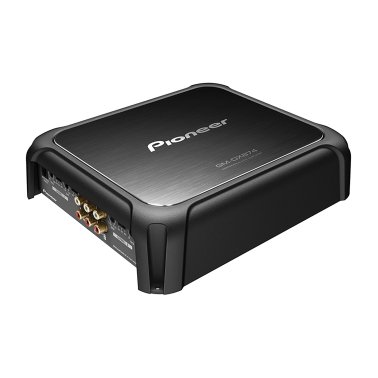

Pioneer® GM-DX874 1,200-Watt-Max 4-Channel Class D Amplifier with Wired Bass Boost Remote
Petra SKU:
PIOGMDX874
Part No.:
394620
Vendor SKU:
GM-DX874
UPC:
884938421843
Retail Price:
$300.00
The Pioneer GM-DX874 4-Channel Class D Amplifier will deliver up to 150 watts RMS to each of your front and rear speakers for powerful music. Highly efficient Class D technology keeps this powerful amp running as cool as it looks and allows for a compact chassis that fits in a lot of out of the way spaces. The frequency response of this amplifier stretches up to 50 kHz, for Hi-Res Audio Certified playback. Pioneer uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance. Speaker-level inputs allow you to install this amp in a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, whether you're driving speakers or subs.
This item is packaged in retail packaging.
Item not available for internet resale.
Free FedEx Ground shipping on qualified orders.
Details
- Max power output: 1,200 watts; 200 watts x 4 channels at 4 ohms; 600 watts x 2 channels at 4 ohms bridged
- RMS power output: 100 watts x 4 channels at 4 ohms, 125 watts x 4 channels at 1 ohm, 150 watts x 4 channels at 2 ohms, and 300 watts x 2 channels at 4 ohms bridged
- 1-ohm to 8-ohm allowable load impedance
- Designed to power automotive speakers and subwoofers
- Class D technology makes it smaller in size for greater installation options
- Frequency response: 10 Hz to 50 kHz; Hi-Res Audio certified
- 50 Hz bass boost
- Made from high-quality, textured aluminum panel and tough frame plus high-quality audio components for long life
- PCS (Protection Control System) continuously monitors input voltage, current consumption, and operating temperature to automatically adjust amp's output to ensure operational stability during long listening sessions or when installed in high-temperature environments
- Gold-plated RCA terminals for accurate signal with increased electrical conductivity; prevent corrosion and provide enhanced durability with excellent wear resistance
- Fuse rating: 30 amps x 2
- Dimensions: 9-7/8 in. x 2-3/8 in. x 8-1/2 in.
- Weight: 5.5 lbs. (not including leads for wiring)
- Includes 2 installed ATO fuses, bass boost remote and control cable, speaker level to RCA input adapter, installation screws, wire terminal tool, owner's manual, and warranty sheet
Specifications
1
6.5 Pound (lb)
10.6 Inch (in)
4.4 Inch (in)
12.8 Inch (in)
2.375 Inch (in)
9.875 Inch (in)
8.5 Inch (in)
6 Pound (lb)
15X13X8
12.8 x 10.6 x 4.4 in., 6.5 lbs.
8.5 x 9.875 x 2.375 in., 6 lbs.
Electric
Radio Frequency
RCA
14.4
D
Yes
1200 Watt (W)
200 Watt (W)
10 Hertz (Hz)
50 Kilohertz (kHz)
Car Audio
No Mount Included
75dB
200W @ 4ohm, 600W @ 4ohm
30A x 2
<1.0%
4 Channels ()
1200 Watt (W)
0 Inch (in)
4-Channel Amplifier,Two 30-amp ATO fuses (installed),Bass Boost Remote Control,Bass Boost Remote Control Cable,Speaker Level to RCA Input Adapter,Installation Screws X 4,Wire Terminal Tool,Owner's manual (English/ French),1 Year Warranty Sheet
Black
1 year
Yes
Y
Black
Retail
China
Black
00884938421843
Metal
Not Applicable
Not Applicable
