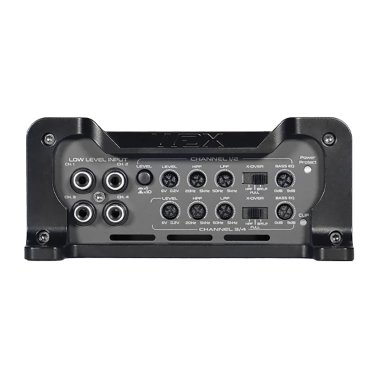

DB Drive™ WDX® Series Mini WDX200.4 200-Watt-Max 4-Channel Class-D Audio Amplifier 12-Volt for Vehicles
Petra SKU:
DBDDWDX2004
Part No.:
395951
Vendor SKU:
D WDX200.4
UPC:
811536036476
Retail Price:
$279.99
The WDX200.4 4-Channel Class-D Mini Amplifier from DB Drive can be used in a variety of high-performance car audio applications. The variable 2-stage RCA inputs are designed to accommodate different levels of low-level RCA outputs from head units or different processors. Its slim mounting width allows for big power in smaller spaces. The ACT crossover features both high- and low-pass filters which allow you to tune your system for different applications. Large-gauge direct-connect power terminals will make sure you can get plenty of battery current to your amplifiers for higher efficiency.
This item is packaged in retail packaging.
Item not available for internet resale.
Free FedEx Ground shipping on qualified orders.
Warning:
Cancer and Reproductive Harm - www.P65warnings.ca.gov
Details
- 4 x 200 watts at 4 ohms; 4 x 300 watts at 2 ohms; 2 x 300 watts at 4 ohms bridged; rated at 14.4 volts with working voltage between 12 volts and 15 volts
- 2-ohm stereo capability
- Class D circuitry
- Frequency response: 20 Hz to 22 kHz; signal-to-noise ratio: less than 105 dB
- Independently selectable F/R crossover with high-pass filter, low-pass filter, band-pass, and full
- Variable high-pass filter (12 dB slope): 20 Hz to 5 kHz
- Variable low-pass filter (12 dB slope): 50 Hz to 5 kHz
- Bass equalizer: 0 dB to 9 dB
- Low-level input: 6 volts to 0.2 volts
- 4-gauge power wire input
- CHM (Collective Heat Management), ACT (Adaptive Crossover Technology), SESI (Signal Evaluation Status Indicator, and APC (Audio Protection Circuit)
- Direct-connect speaker terminals
- Dimensions: 9 in. L x 5.5 in. W x 2.38 in. H
- Includes owner's manual/warranty
Specifications
1
4.85 Pound (lb)
7.6 Inch (in)
4.3 Inch (in)
11.2 Inch (in)
2.38 Inch (in)
5.5 Inch (in)
9 Inch (in)
4.4 Pound (lb)
12X10X4
11.2 x 7.6 x 4.3 in., 4.85 lbs.
9 x 5.5 x 2.38 in., 4.4 lbs.
Electric Hardwired
no wireless technology
RCA Pair
12, 14.4
D
300 Watt (W)
200 Watt (W)
20 Hertz (Hz)
22 Kilohertz (kHz)
Car Audio
105dB
2x300W @ 4ohm, 4x200W @ 4ohm, 4x300W @ 2ohm
4 Channels ()
300 Watt (W)
0 Inch (in)
Amplifier
Black
1 year limited
Yes
Y
Black
Retail
China
Black
Aluminum , Plastic, Copper, resin
Product does not require a battery
Product does not require a battery
