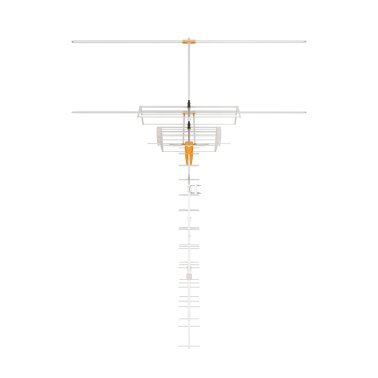

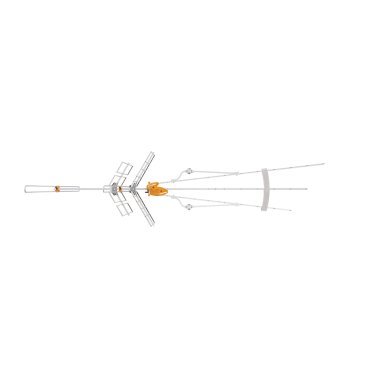

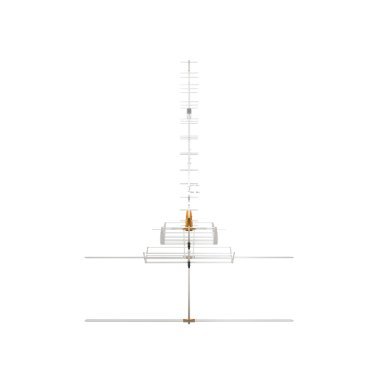

Televes® DAT Series BOSS Mix LR Low-VHF/High-VHF/UHF Antenna

Petra SKU: TLVS148383
Part No.: 396768
Vendor SKU: 148383
UPC: 8424450231951
Retail Price: $209.95
The Televes® DAT BOSS LR Mix U/V-Hi/V-Lo Antenna is a state-of-the-art, long-range TV antenna that automatically adapts its gain in real time to optimize the reception of television signals. This ensures the optimum level of signal is delivered at all times. The antenna receives the latest US broadcast frequencies, significantly improving gain and range over previous generations. It receives very weak distant signals while at the same time avoiding overload caused by very strong signals. This is a very-high-gain directional antenna designed to offer stable and high-quality reception of low VHF, high VHF, and UHF signals in challenging long-range and fringe receiving scenarios. Not only do industry experts rave about the DAT BOSS Antenna's exceptional long-range multi-band performance and market-leading gain, but also the unparalleled manufacturing quality. Using only the finest materials (aluminum, stainless steel, ABS plastic), this antenna ensures years of trouble-free operation in the most challenging environments. Experience the difference in quality and performance with the DAT BOSS LR Mix U/V-Hi/V-Lo Antenna. Enjoy crystal clear TV reception!
This item is packaged in retail packaging.

Details

  • Up to 100-mile range
  • Redesigned for optimal reception of TV signals on RF channels 7-36
  • Built-in TForce preamplifier for crystal clear TV reception
  • FM and LTE/5G filtering to eliminate radio and cellular phone interference
  • DAT design, based on 3 yagi antennas with asymmetric directors, provides great directivity as well as an optimal anti-echo radiation pattern; elegant cutting-edge design is built strong to withstand the harshest elements
  • Special double-U dipole: its open/close format provides optimal frequency response flatness
  • Fully shielded switch box protects the BOSS system from impulsive noise; grounded for full protection against electrical discharge
  • Manufactured in aluminum (stainless) for a long service life
  • 2 work mode options: intelligent low power consumption mode or passive mode (lack of power supply); continues to work in passive mode in the event of power failure
  • Compact (82.8 in. x 70 in. x 29 in.) and easy to install
  • Frequency range: RF channels 2-36
  • Includes preamplifier, power supply unit, power cord, mast clamps, and LTE/5G filter
Product Manual Sell/Spec Sheet Warranty Document

Specifications

1
12.55 Pound (lb)
16.75 Inch (in)
5.5 Inch (in)
40.6 Inch (in)
81 Inch (in)
29 Inch (in)
104.4 Inch (in)
10.1 Pound (lb)
SHIP ALONE
6 x 41 x 17 in., 12.5 lbs.
104.4 x 29 x 81 in., 10.1 lbs.
Corded Electric
UHF, VHF
Outdoor
46 Decibel (dB)
54 Megahertz (MHz)
608 Megahertz (MHz)
100 Mile (mi)
Radio Frequency
VHF
Mast Mount
70 Ampere (A)
3.6 Watt (W)
3 Inch (in)
HDTV Antenna, Power Supply Unit (PSU), Power Cord, Mast Clamps
Orange
Orange, Silver
Orange
Retail
365 day
Spain
Yes
E
84244502319510
aluminum, stainless steel, ABS plastic
Not Applicable
0
0
Not Applicable
