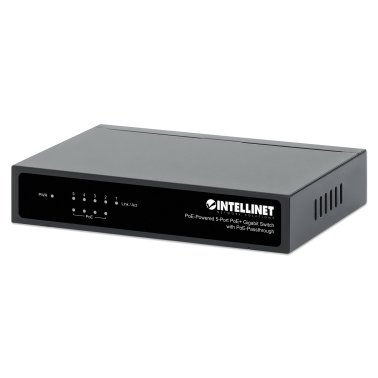

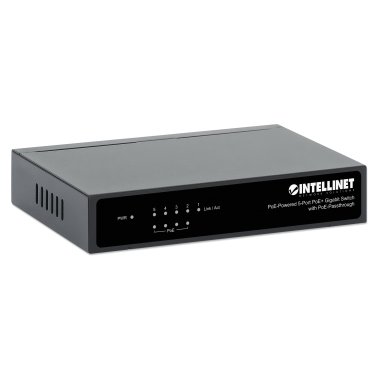

Intellinet Network Solutions® 68-Watt PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough

Intellinet Network Solutions® 68-Watt PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough

Petra SKU: ICI561082

Part No.: 395464

Vendor SKU: 561082

UPC: 766623561082

Retail Price: $79.99

The Intellinet Network Solutions® PoE-Powered 5-Port Gigabit Switch with PoE Passthrough is designed to take power from a PoE switch and pass both data and electrical power to several PoE-compatible devices via standard CAT-5E or CAT-6 network cables. Equipped with 5 Gigabit Ethernet ports, this switch can power up to 4 wireless LAN access points and bridges, VoIP phones, or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps. When you connect the PD port (port 1) to a PoE+ enabled IEEE 802.3af/at compliant PoE switch, the Intellinet Network Solutions PoE Passthrough Switch uses some of the electric current to power itself and passes the available surplus power to up to 4 PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center. The Intellinet Network Solutions® PoE Passthrough Switch supports the IEEE 802.3at protocol and is designed to inject up to 25 watts of power per port. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), the use of an Intellinet Network Solutions PoE/PoE+ Splitter (sold separately) is suggested. Equipped with 5 auto-sensing 10/100/1,000 Mbps RJ45 Gigabit Ethernet ports, the Intellinet Network Solutions® PoE Switch with PoE Passthrough with its 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.

This item is packaged in retail packaging.

Free FedEx Ground shipping on qualified orders.

Warning: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Details

Receives power from a PoE injector or PoE switch and provides power to up to 4 PoE network devices; doubles the connection distance between PoE source and device from 328 ft. (100 m) to 656 ft. (200 m)
10/100/1,000 auto-sensing ports automatically detect optimal network speeds
Can be powered via PoE or the included power adapter
Total PoE budget for this switch is 68 watts when using the included AC power adapter; this brings the maximum per-port power distribution to 17 watts; when using the PD port to provide power, the total power budget is 26 watts (6.5 watts per port); maximum per-port power usage cannot exceed 30 watts
IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
Saves installation costs by delivering data and power over existing network cables
Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras); supports IEEE 802.3at/af detection and short circuit, overload, and high-voltage protection 10 Gbps switch fabric; supports up to 2048 MAC address entries
Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification; fully NDAA-compliant
Green Ethernet power-saving technology that deactivates unused ports and adjusts power levels based on the cable length
All RJ45 ports with Auto-MDIX (auto uplink) support
Store and forward switching architecture
IEEE 802.3x flow control for full duplex; buffer memory of 1.5 MBits
Compact desktop format with rugged metal housing; fanless design for silent operation; mounting holes for wall mounting
3-year warranty
Includes power adapter, power cable, and instructions

Product Manual Sell/Spec Sheet Warranty Document

Specifications

Inner Carton Quantity: 1

Individual Packaging Weight: 1.9 Pound (lb)

Individual Packaging Width: 6.9 Inch (in)

Individual Packaging Height: 3.9 Inch (in)

Individual Packaging Length: 7.7 Inch (in)

Product Height: 1.1 Inch (in)

Product Width: 3.07 Inch (in)

Product Length: 3.07 Inch (in)

Product Weight: 0.6 Pound (lb)

Shipping Box Dimensions: 8X8X6

Individual Package Dimensions (L x W x H, Weight): 6.77 x 7.48 x 3.94 in., 0.9 lbs.

Product Dimensions (L x W x H, Weight): 3.07 x 3.07 x 1.1 in., 0.6 lbs.

Data Rate: 1000 Mbps

Voltage Rating: 100 - 240

Min Operating Temperature: 32 Fahrenheit (°F)

Max Operating Temperature: 104 Fahrenheit (°F)

Ethernet Port Speed: 10/100/1000

Mount Type: Wall Mount

Connection Type: Ethernet

Power Source: AC Adapter

Wireless Source/Technology: no wireless technology

Cord Length: 31.2 Inch (in)

Includes:

PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough, Power adapter, Power cable, Instructions

Primary Color: Black

Color: Black

Manufacturer Color: Black

Individual Packaging: Retail

Warranty Period: 3 year

Country of Origin: China

Returnable: Yes

Free Freight: Y

Material:

Metail housing

Battery Information: Not Applicable

Battery 2 Information: Not Applicable
