ERP® 8-In. Replacement Safety Surface Element for GE® Electric Ranges, Part WB30X31057

Petra SKU: ERWB30X31057

Part No.: 343787

Vendor SKU: WB30X31057

UPC: 840993034848

Retail Price: $39.00

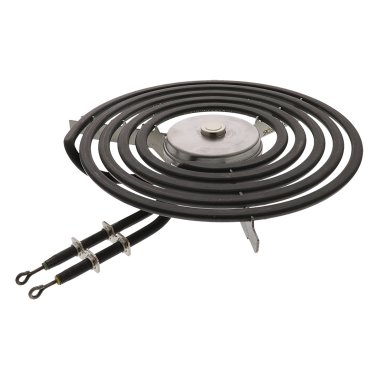

Is your electric range's cooktop surface element not performing like it used to? For example, does the element remain cool? Are the contacts on the surface element worn out or blackened? Or is there is rust or corrosion on the coils? Then you may need to replace the surface element itself. The ERP® 8-In. Replacement WB30X31057 Range Safety Surface Element supplies the heat to a cooking area on top of the electric range. This element has temperature-limiting capabilities to reduce the risk of cooktop oil and grease fires. The number one reason for household fires is cooking-related, so retrofitting with this Safety Surface Element makes sense on a lot of levels. US regulations require all new coil top ranges to have temperature limiting capabilities. This retrofit replacement element from ERP® has a silver medallion with a button (sensor) in the center of the coil. This button must contact the bottom of the pan for the thermostat to sense the temperature properly. When the thermostat detects a pan temperature above the safe limit, the element will shut off automatically until a lower, safe pan temperature is reached, then heat will resume to the element. This will not affect everyday cooking, as automatic shutoff is temporary and only happens at very high temperatures.

This item is packaged in a poly bag.

This item can not be returned

Free FedEx Ground shipping on qualified orders.

Details

240 volts, 2,400 watts
Compatible with GE part number WB30X31057
Also compatible with brands like Hotpoint, Camco, and Kenmore
Safety Surface Elements help prevent cooking fires; fire suppression systems try to douse the fire after the fact plus need annual inspection
Retrofitting with Safety Surface Elements can save costly rehab costs by helping to prevent a fire as well as avoiding potential lawsuits for injury or worse
Installation of element may qualify for a discount with insurance companies that offer a discount for preventative measures such as Safety Surface Elements
UL listed

Warranty Document

Specifications

Inner Carton Quantity: 1

Individual Packaging Weight: 1.05 Pound (lb)

Individual Packaging Width: 7.5 Inch (in)

Individual Packaging Height: 2 Inch (in)

Individual Packaging Length: 10 Inch (in)

Product Height: 2 Inch (in)

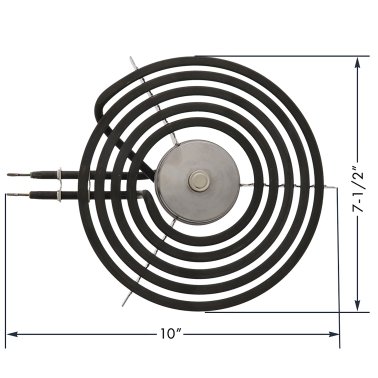

Product Width: 8 Inch (in)

Product Length: 10 Inch (in)

Product Weight: 1.15 Pound (lb)

Shipping Box Dimensions: 12X10X4

Individual Package Dimensions (L x W x H, Weight): 10 x 7.5 x 2 in., 1.05 lbs.

Product Dimensions (L x W x H, Weight): 10 x 8 x 2 in., 1.15 lbs.

Voltage Rating: 240

Compatible Models: GE WB30X31057

Coil Size: 8 Inch (in)

Coil Turns: 4 Unit ()

Power Source: Electric

Wattage: 2400 Watt (W)

Cord Length: 0 Inch (in)

Number of Burners: 1 Pieces (pcs)

Includes:

Safety element

Primary Color: Black

Color: Black, Silver

Manufacturer Color: Black

Individual Packaging: Poly Bag

Warranty Period: 1 year

Country of Origin: Mexico

Free Freight: Y

14 Digit GTIN: 00840993034848

Battery Information: Product does not require a battery
