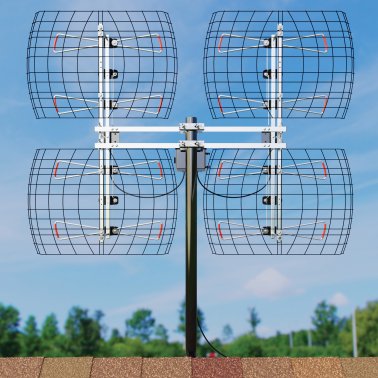

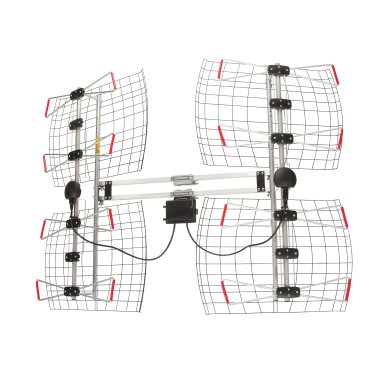

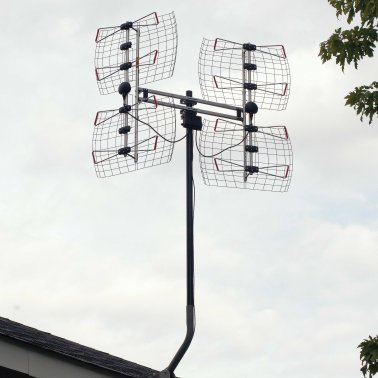

Antennas Direct 8-Element Bowtie UHF Outdoor HDTV Antenna, Multi-Directional, 70+ Mile Range, 4K 8K UHD NEXTGEN TV with All-Weather Mounting Hardware
Petra SKU:
ADIDB8E
Part No.:
245996
Vendor SKU:
DB8-E
UPC:
817848011620
Retail Price:
$199.99
The Antennas Direct® 8-Element Bowtie antenna is a high-performance UHF antenna array with a range of 70+ miles and unsurpassed gain of 17.4 dB. This multi-directional bowtie HDTV antenna features specially designed brackets which allow the 2 antenna panels to turn in different directions to target broadcast television towers, so you get more free TV channels even if your towers are spread out. Antennas Direct® has brought the Bowtie outdoor TV antenna into the 21st century with its patented design which allows for easy installation options that are off-limits to much larger antennas. It is ideal for rural and suburban installations challenged with pulling in signals through heavy foliage or roofing materials when TV towers are far away. The reflectors add forward gain and focus the antenna's power to protect the incoming TV signal from interference that causes pixelation or a complete loss of picture. It is compatible with our VHF kit (sold separately) for even more channels. If you had cable or satellite installed before, the coaxial cable needed to distribute signal throughout your home may already be installed - simply connect the DB8-e to the existing coaxial cable and you’ve got free local TV from the networks. Find your TV channels and towers on our website or using our free Antenna Point app on Android™ or iOS™ devices. Coaxial cable and mast sold separately.
This item is packaged in retail packaging.
Details
- Antennas Direct 8-Element Bowtie HDTV antenna - has a range of 70+ miles and patented, multi-directional, specially designed brackets that allow the antenna to turn in different directions to target transmitting towers
- Bowtie antenna measures 36.8 in. H x 50 in. W x 10 in. D; ideal for rural and suburban installations challenged by heavy foliage or roofing materials
- Compatibility - NEXTGEN TV, 4K, 8K UHD, Full HD 1080p; no Internet required
- Each market has TV towers located in different areas; distance to the towers and obstructions like trees and your home's building materials will affect reception
- Reflectors add forward gain and focus the antenna's power to protect incoming TV signal from interference that causes pixelation or complete loss of picture
- Includes 8-element bowtie antenna, reflector panels, all-weather mounting hardware, adjustable mast clamp, instructions; compatible with VHF kit for Hi-VHF reception (sold separately); lifetime manufacturer warranty
- Based in St. Louis, MO., Antennas Direct is dedicated to providing superior digital antennas and accessories engineered in the USA
Specifications
1
12 Pound (lb)
23.5 Inch (in)
4 Inch (in)
37.4 Inch (in)
36.75 Inch (in)
50 Inch (in)
10 Inch (in)
9.4 Pound (lb)
WRAP
37.4 x 23.5 x 4 in., 12 lbs.
10 x 50 x 36.75 in., 9.4 lbs.
Non-Powered
Multi-Directional
UHF, HDTV
Indoor and Outdoor
75 Ohm (Ω)
17.4 Decibel (dB)
470 Megahertz (MHz)
608 Megahertz (MHz)
70 Mile (mi)
Coaxial
Radio Frequency
HDTV
Pole Mount
0 Inch (in)
Antenna Elements (2), Reflector Panels, Swing Bracket, Mast Mounting Hardware, Coaxial Cable for Combining with Pre-installed Weather Boots (2), Combiner (1), Cross Bar Mount (1), Assembly and Mounting Hardware
Silver
Black, Silver
Black/Silver
Retail
lifetime
Taiwan
Yes
E
10817848011627
Aluminum, Steel, Plastic
Product does not require a battery
0
0
Not Applicable
